Atlas
Peripheral Stent System
ATLAS is a peripheral self-expanding stent system consisting of an OTW delivery catheter and a pre-mounted stent made of nitinol.ATLAS is intended for use in the treatment of stenotic or occlusive lesions in iliac or femoropopliteal arteries to establish and maintain patency. ATLAS self-expanding stent is indicated for use in percutaneous intravascular implantation in patients with atherosclerotic, radiation-induced, and posttraumatic lesions causing vessel stenosis, of hemodynamic significance and intractable in other forms of treatment.
Stent Graft Diameter | 5 mm - 10 mm | |
Stent Graft Lenght | 18, 22, 23, 27, 28, 37, 38, 57, 58 | |
Catheter Diameter | 6F | |
Catheter Lenght | 120cm | |
Radiopasity | Pt-Ir Marker | |
Applicable Guideware | 0.035" | |
Design | Mesh Design |

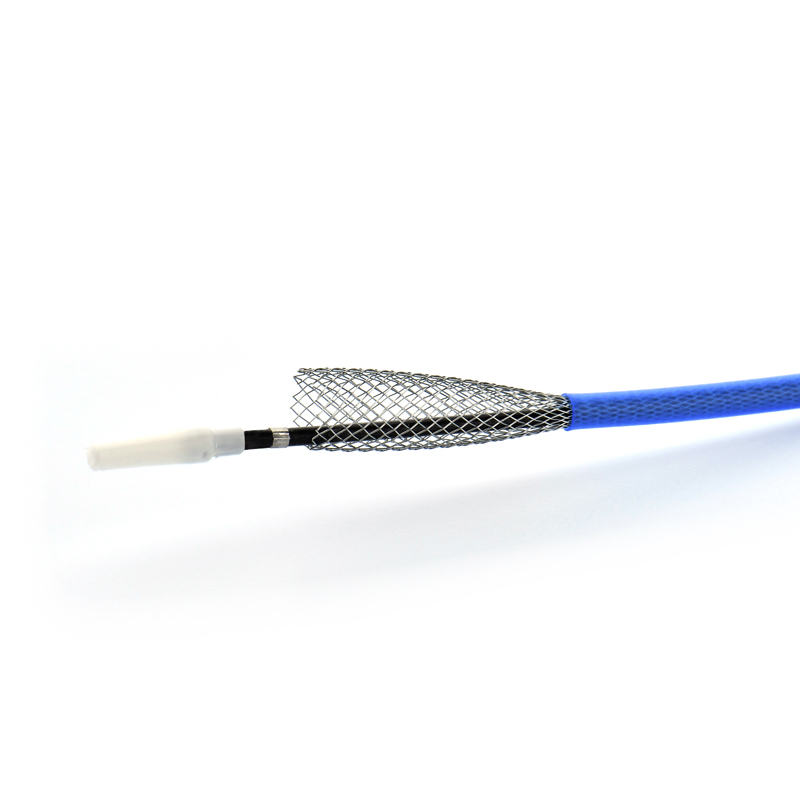

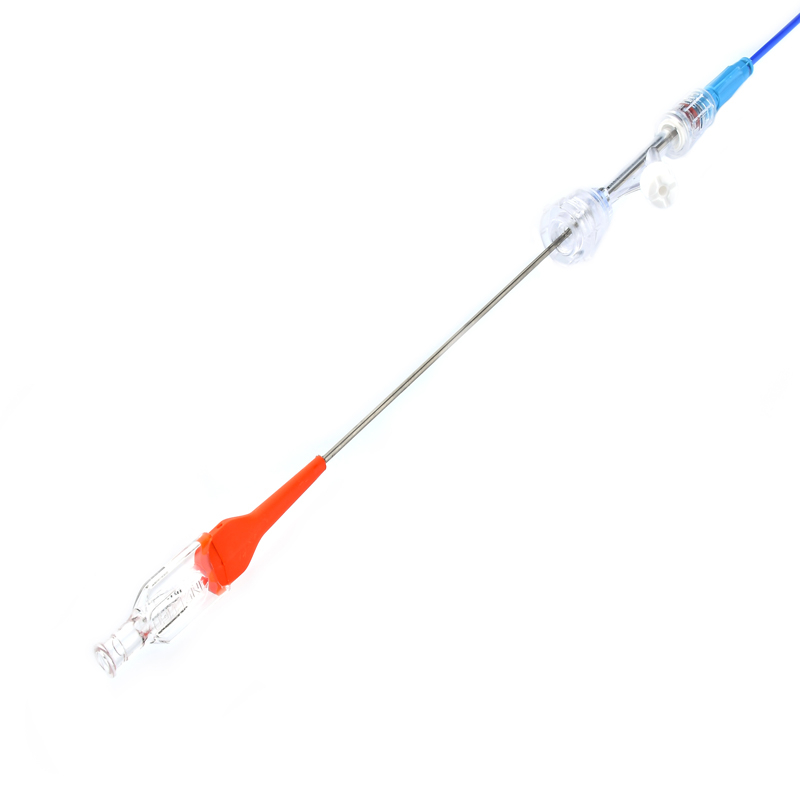

The Atlas Peripheral Stent System is a mechanism that is inserted to prevent localized flow narrowing due to a disease or to assist in surgical operations. The Atlas Peripheral Stent System consists of two components: Implantable endoprosthesis and a stent delivery system. This stent is a laser-cut, self-expanding stent composed of a nickel-titanium alloy (Nitinol). Radiopaque markers of tantalum, located at both the proximal and distal ends of the stent, increase the visibility of the stent and aid in its placement. The stent is inserted into a 6 F (2.1 mm maximum outer diameter) delivery system. and is compressed. transmission system; It has a triaxial design with an outer shaft that stabilizes the stent delivery system, a middle shaft that protects and retains the stent, and an inner shaft that provides a guidewire lumen. Transmission system 0.035 in (0.89 mm) guide Compatible with wires.
Detailed specifications
AtlasⓇ The Peripheral Stent System consists of two components;
Implantable endoprosthesis and stent delivery system.

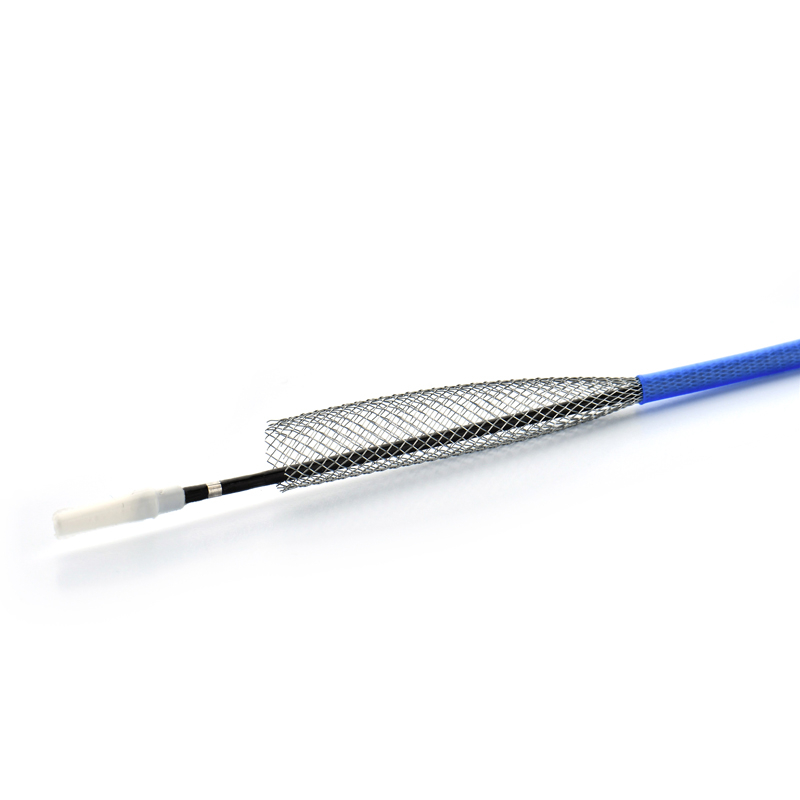

It is a self-expanding stent produced with laser-cut technology consisting of a nickel-titanium alloy (Nitinol).
Radiopaque markers of tantalum, located at both the proximal and distal ends of the stent, increase the visibility of the stent and aid in its placement.
Transmission system 0.035”
Compatible with (0.89 mm) guide
Peripheral self-expanding
• High flexibility
• Radiopaque TANTALIUM markers
• Superior bending strength
• Excellent pushability
AtlasⓇ The Peripheral Stent System is a highly flexible, self-expanding stent for the treatment of arterial vascular occlusions in the iliac artery, femoral artery and popliteal artery.
The open cell stent structure provides high flexibility and excellent vessel alignment, combined with low stent shortening. Available in stent diameters from 5 to 8 mm and with a 6F delivery system (short and long shaft) in stent lengths from 20 to 200 mm.
High Stent Durability
- Low breakage rate with high radial strength
- High quality electric polishing and surface treatment, high adds stent integrity resulting in durability.
- Reduced microcracks reduce the likelihood of stent cracking.
- Optimum balance between Flexibility and Radial Force
- Adapts to the vein in the best way
- Provides homogeneous lesion support
- Sensitive Stent Delivery System
- Better bending fatigue and axial and radial fatigue higher resistance to Flexible Stent Structure
Flexible Stent Structure
- Cell design provides excellent flexibility, provides a balance of comfort and curl resistance.
- Optimal vessel adaptation
- Stable stent platform does not compromise flexibility It offers the most suitable radial force without Minimal shortening
- With laser sourced tantalum markers excellent stent visibility
They are applied in the following cases
- Unsatisfactory result of a PTA procedure (residual stenosis),
- Inner vessel membrane delamination,
- Vessel wall elasticity disorders and pressure from the outside,
- Recurrent st
AtlasⓇ stent easily adapts it’s shape to the arterial wall and does not dislocate itself after deployment. The elasticity of the stent as well as flexibility of the delivery system allows the use of AtlasⓇeven in tortuous vessels.
AtlasⓇself-expanding peripheral stent system is intended to improve luminal diameter in the treatment of symptamotic de novo or restenotic lesions up to 180 mm in length in the native superficial femoral artery and/or proximal popliteal arteries with reference vessel diameters ranging from 3.5 mm – 7.5 mm.
CHARACTERISTICS
- Made of nitinol laser cutting
- (NiTi) – material with higher biocompatibility level and corrosion resistance than medical AISI 316L stainless steel
- Increased conformability within unique open-cell design technology
- Excellent radial force
- High flexibility of the AtlasⓇstent effects in excellent adaptation to vessel curvature
- Special construction of the stent provides a good adhere to the arterial wall
- Radiopaque markers on the stent endings which allow precise implantation
- Special construction of the delivery system make to correction of stent position inside a vessel possible even after the partial stent release.
- Optimized radial force to reduce thrombosis and neointima hyperplasia
- Increased flexibility in severe bend situations
- Precise deployment with simplified single-operator syste
Access and Applicability
- Anatomical view during 6F system profile stent application provides clarity and saves space for contrast injections.
- Excellent traceability with retraction system, shaft push ability designed to provide the most appropriate balance between.
- Against cross tortuous vessels with a contralateral approach longitudinal flexibility.
Correct Placement and Clarity of View
- The radiopaque tip is inserted into the device for complete stent placement.
- Marker tapes on inner metal shaft, cut supports positioning.
Material | Nitinol alloy | |
Stent Diameter | 5 mm - 8 mm | |
Delivery System Structure | Self Expanding | |
Guide Wire Fit | 0.035" (0.89 mm) | |
Minumum Shealth Size | 6 Fr / 2.0 mm | |
Usable Catheter Length | 80 - 120 cm |
STENT LENGTH (80 cm) | STENT LENGTH (120 cm) | ||||||||||||||
Diameter | 20 mm | 40 mm | 60 mm | 80 mm | 100 mm | 120 mm | 150 mm | 20 mm | 40 mm | 60 mm | 80 mm | 100 mm | 120 mm | 150 mm | 200 mm |
(mm) | |||||||||||||||
5.0 | VS52080 | VS54080 | VS56080 | VS58080 | VS510080 | VS512080 | VS515080 | VS520120 | VS540120 | VS560120 | VS580120 | VS5100120 | VS5120120 | VS5150120 | - |
6.0 | VS62080 | VS64080 | VS66080 | VS68080 | VS610080 | VS612080 | VS615080 | VS620120 | VS640120 | VS660120 | VS680120 | VS6100120 | VS6120120 | VS6150120 | VS6200120 |
7.0 | VS72080 | VS74080 | VS76080 | VS78080 | VS710080 | VS712080 | VS715080 | VS720120 | VS740120 | VS760120 | VS780120 | VS7100120 | VS7120120 | VS7150120 | VS7200120 |
8.0 | VS82080 | VS84080 | VS86080 | VS88080 | VS810080 | VS812080 | VS815080 | VS820120 | VS840120 | VS860120 | VS880120 | VS8100120 | VS8120120 | VS8150120 | VS8200120 |
