MultiBEAM
IVC Filter
The Vena Cava Filter is designed to work predictably and reliably. It allows you to focus on the effective treatment of your patients rather than the risk of tibia perforation, displacement, or suture embolization.
Design | Nitinol Innovative Design | |
Sheath Lenght | 30 cm,45 cm, 50cm | |
Catheter Profile | 8F-9F | |
Radiopacity | Coil Shaft is visible from the distal tip to proximal shaft. | |
Introducer Sheath | 9F | |
Catheter Inner Layer | PTFE | |
Structure of the Catheter | PA/PEBAX |

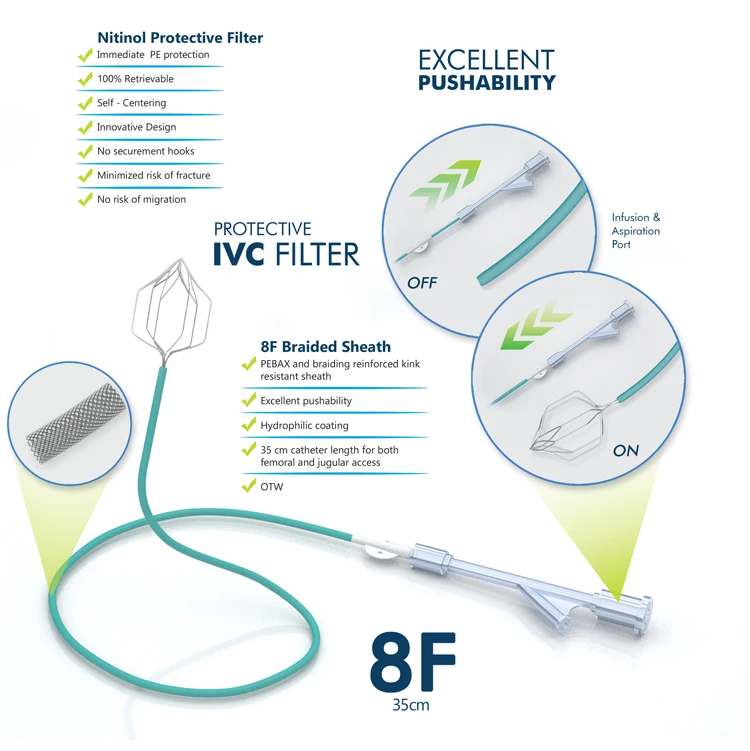

The Multibeam Catheter System is a self-expanding nitinol temporary vena cava filter. The introducer kit is designed to deliver a temporary vena cava filter to the inferior vena cava for the percutaneous delivery system. It guarantees ideal clot catching with its design. The system is supplied sterile and should be used only once.
Detailed specifications
Provides instant PE protection
- 100% recoverable
- It is centered inside the vessel lumen
- Innovatively designed
- Does not need security hooks
- No risk of migration
- The possibility of breakage is minimized
The MultiBEAMⓇ Vena cava filter is made of nitinol, a shape memory smart metal. It is 32mm in diameter. It has a double basket structure consisting of six diamond-shaped asymmetric arms. The filter is suitable for temporary use for up to 14 (included) days. It is suitable for femoral side and jugular use as it is fixed to the conduction wire. While the filter can be easily used with a 6F catheter, a 10F - 12F catheter is sufficient for retrieval.
Design Nitinol Innovative Design
Sheath Length 50cm
Catheter Profile 5F
Radiopacity Distal Radtoopaque.
Introducer Sheath 8F-10F
Catheter Structure PA/PEBAX
Design | Nitinol Innovative Design | |
Sheath Lenght | 30 cm,45 cm, 50cm | |
Catheter Profile | 8F-9F | |
Radiopacity | Coil Shaft is visible from the distal tip to proximal shaft. | |
Introducer Sheath | 9F | |
Catheter Inner Layer | PTFE | |
Structure of the Catheter | PA/PEBAX |
Order Number | Filter outer diameter | Working Length | Introducer Sheath Diameter | Catheter Diameter |
VS1076 | 32 cm | 30 cm | 9.0 Fr | 9.0 Fr |
VS1077 | 32 cm | 45 cm | 9.0 Fr | 9.0 Fr |
VS1078 | 32 cm | 50 cm | 9.0 Fr | 9.0 Fr |
