Mantis XP
Thrombectomy System for Fistula
Pharmacomechanical thrombectomy technology available for dialysis native AV fistulae. Pharmacomechanical thrombectomy technology available for dialysis native AV fistulae.

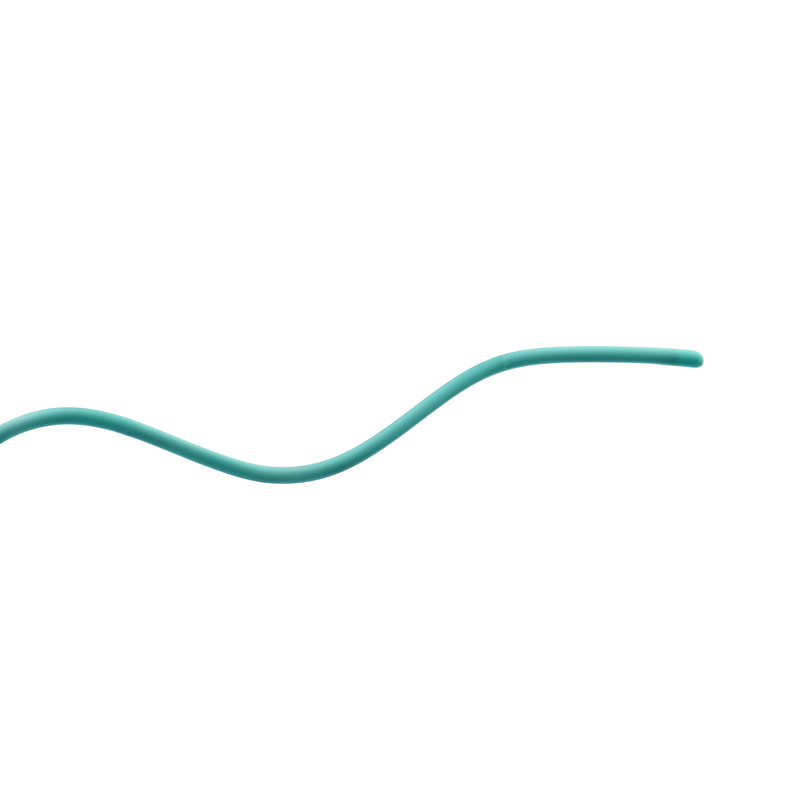

| Design | Sinisoidal wawe shape | |
| Infusion Zone | 10 cm from distal tip | |
| Catheter Lenght | 30cm, 45cm, 90cm, 110cm | |
| Catheter Profile | 5.0f - 7.0F | |
| Radiopacity | Braided Catheter is visible from the distal tip to proximal shaft | |
| Active Zone | 15 cm | |
| Catheter Inner Layer | PTFE | |
| Structure of the Catheter | Nitinol shape PA/PEBAX |

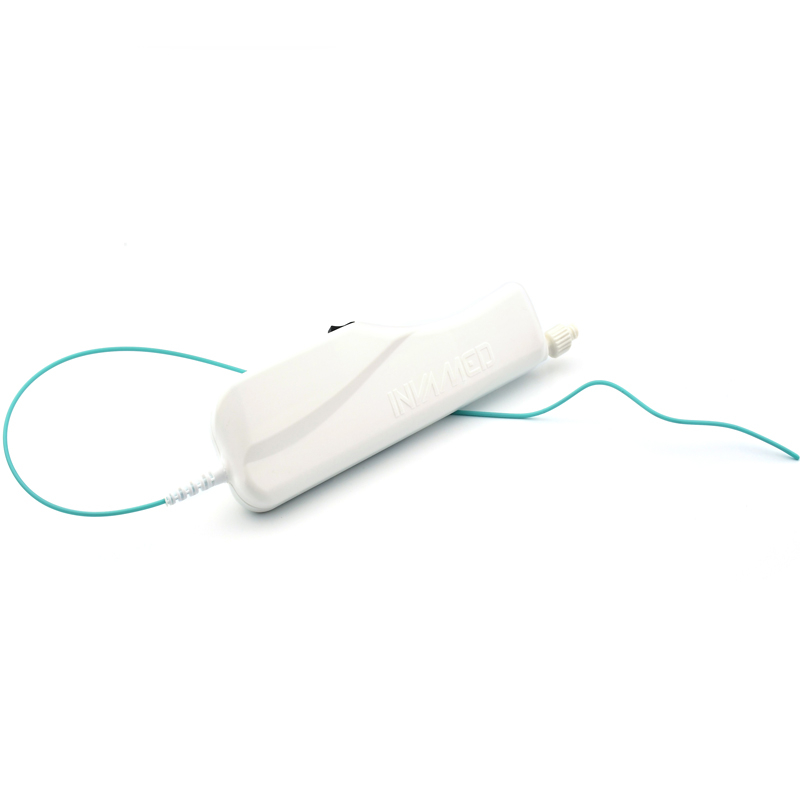

It is a thrombectomy catheter advanced over a motorized wire. Invamed Thrombectomy System is used to open the lumen and dissolve the thrombus in acute, sub-acute, and chronic acute occlusions in venous peripheral occlusions (also available in the pulmonary artery and vena cava inferior uses). The system consists of a specially designed active tip, motor unit, and infusion port to dissolve the thrombus. The active end breaks up the thrombus with its rotational movement in the vessel. The procedure can be performed by sending anti-thrombolytic drugs through the infusion port. In this way, the thrombus and the drug are mixed and dissolved and a quick result can be obtained. There are uses of thrombectomy in the treatment of peripheral venous occlusions, in the treatment of acute venous occlusions in the acute, sub-acute and chronic phases, in the treatment of opening the lumen and dissolving the thrombus, as well as in the pulmonary artery and inferior vena cava.
Detailed specifications
Powerful Yet Atraumatic

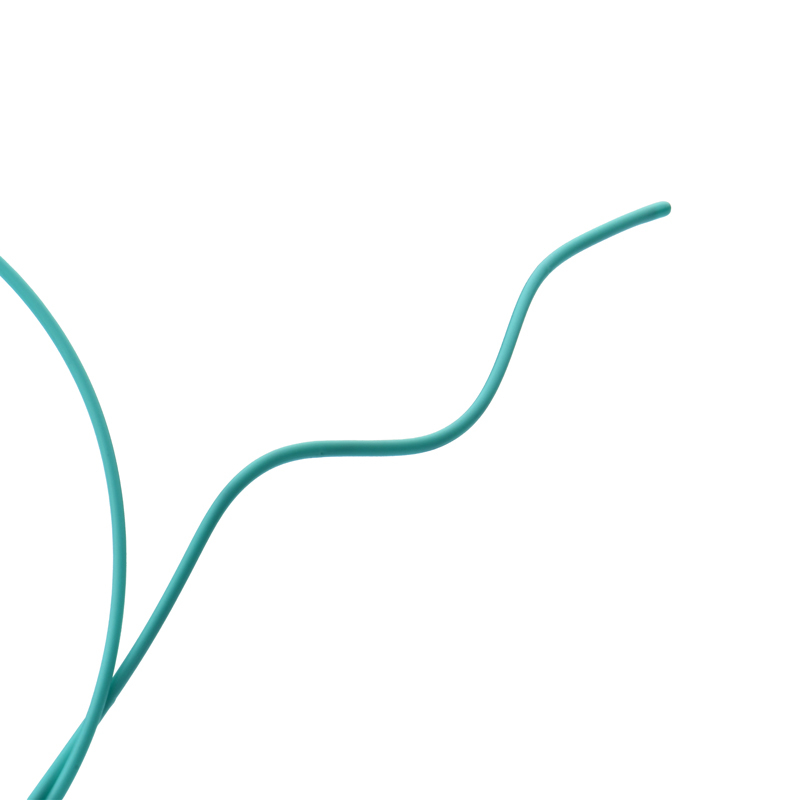

- The powerful rotating action of the single sinusoidal catheter effectively macerates wall-adherent thrombus while reducing the risk of endothelial damage
- Enables infusion of thrombolytics and contrast media through the built-in 3-way side-port and distal side (10 cm) hole.
- Catheter design enables steerability through tortuous anatomy
Ergonomic, One-Piece Design
- Choose between a low profile (5F) system or a more robust (7F) system for larger vessels
- Single-piece system, with no capital equipment to purchase
- Ready to use immediately, with no assembly required
- Indicated for use in both the peripheral vasculature and in AV dialysis fistulae/grafts
- Available in 30 cm length for AV dialysis fistulae
- Available in 45 cm length for upper extremity or short-reach needs
- Available in 110 cm length for popliteal/femoral access or other long-reach needs.
Indicated Vessels
- Peripheral Veins
- Pulmonary Artery
- Inferior Vena Cava
- Subclavian Vein
- Hepatic Vein
- Radiopaque Support Catheter with Guidewire
- aSingle-Handed Easy procedure Control
- Atraumatic Tip Design
- New generation vibro-rotational tip fragments to thrombosis into microparticles.
- Cover all vessel lumen and act on wall adherent thrombus.
- OTW Support Catheter allows safe access for thrombolytic infusion.
- The special shaft design provides comfortable steerability.
- The rotational vortex effect prevents embolism
- Decreases thrombolytic treatment dose significantly
- Prevents post-thrombolytic syndrome incidences significantly
- Decreases length of stay in hospital
- No capital equipment or installation is needed.
- Recommended to be used with a support catheter.
| Design | Sinisoidal wawe shape | |
| Infusion Zone | 10 cm from distal tip | |
| Catheter Lenght | 30cm, 45cm, 90cm, 110cm | |
| Catheter Profile | 5.0f - 7.0F | |
| Radiopacity | Braided Catheter is visible from the distal tip to proximal shaft | |
| Active Zone | 15 cm | |
| Catheter Inner Layer | PTFE | |
| Structure of the Catheter | Nitinol shape PA/PEBAX |
| Order Number | Device outer diameter | Working Length | Tip Design | Infusion Zone | Active Zone |
| VS1036 | 5.0 Fr | 30 cm | Sinisoidal Wave | 10 cm | 15 cm |
| VS1037 | 7.0 Fr | 30 cm | Sinisoidal Wave | 10 cm | 15 cm |
| VS1038 | 5.0 Fr | 45 cm | Sinisoidal Wave | 10 cm | 15 cm |
| VS1039 | 7.0 Fr | 45 cm | Sinisoidal Wave | 10 cm | 15 cm |
| VS1040 | 5.0 Fr | 90 cm | Sinisoidal Wave | 10 cm | 15 cm |
| VS1041 | 7.0 Fr | 90 cm | Sinisoidal Wave | 10 cm | 15 cm |
| VS1042 | 5.0 Fr | 110 cm | Sinisoidal Wave | 10 cm | 15 cm |
| VS1043 | 7.0 Fr | 110 cm | Sinisoidal Wave | 10 cm | 15 cm |
