InWIRE
PTCA Guidewire
It is designed to facilitate the insertion of balloon dilatation catheters or other interventional therapeutic devices during percutaneous transluminal coronary angioplasty (PTCA) or other intravascular interventional procedures.
Unique Solution for PTCA and PTA and consists of an elastic nitinol core wire
- Easy steerability
- Flat,malleable tip
- Hydrophilic polymer coating
- Radio-opeque tip
- Torque Capability

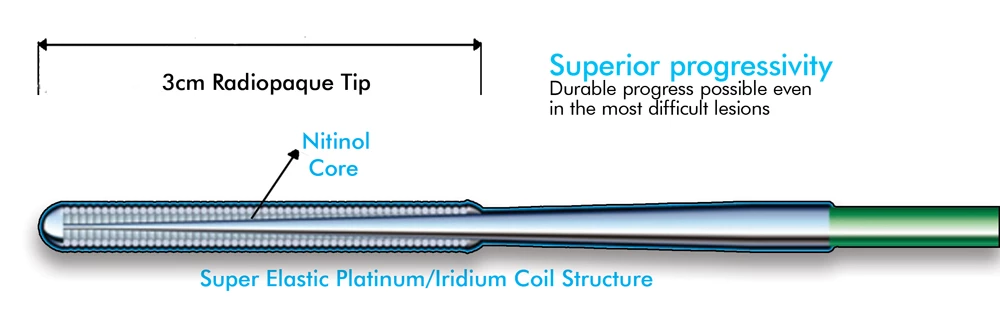

Invamed Guide Wire products are a guide wire for use in PTCA and PTA and consist of an elastic nitinol core wire. The guide or platinum/iridium alloy helix provides radiopacity at the distal end under high-resolution fluoroscopy. There is a hydrophilic polymer coating on the distal surface that creates high lubricity. It has non-damaging flexible tip and slippery body structure. The distal 3 cm portion of the tip is radiopaque
Detailed specifications
The INVAMED Angioplasty Guide Wire is a guide wire for use in PTCA and PTA and consists of an elastic nitinol core wire. The guide or platinum/iridium alloy helix provides radiopacity at the distal end under high resolution fluoroscopy. There is a hydrophilic polymer coating on the distal surface that creates high lubricity. It has non-damaging flexible tip and slippery body structure. The distal 3 cm portion of the tip is radiopaque.
Excellent Torque Capability
Elastic tip and integrated design target vein to deliver quickly.
Allows 1:1 torque response.
They are guide wires used for diagnosis or intervention device insertion and recanalization in coronary and peripheral vessels. They are used to reach and pass the lesion in a target lesion.
Guidewires are Orientable.
They have various lengths and configurations.
Hydrophilic Coating
Provides a durable and smooth progression possible even with curved veins.
Superior Extensibility
Durable progression possible even in the most difficult lesion.

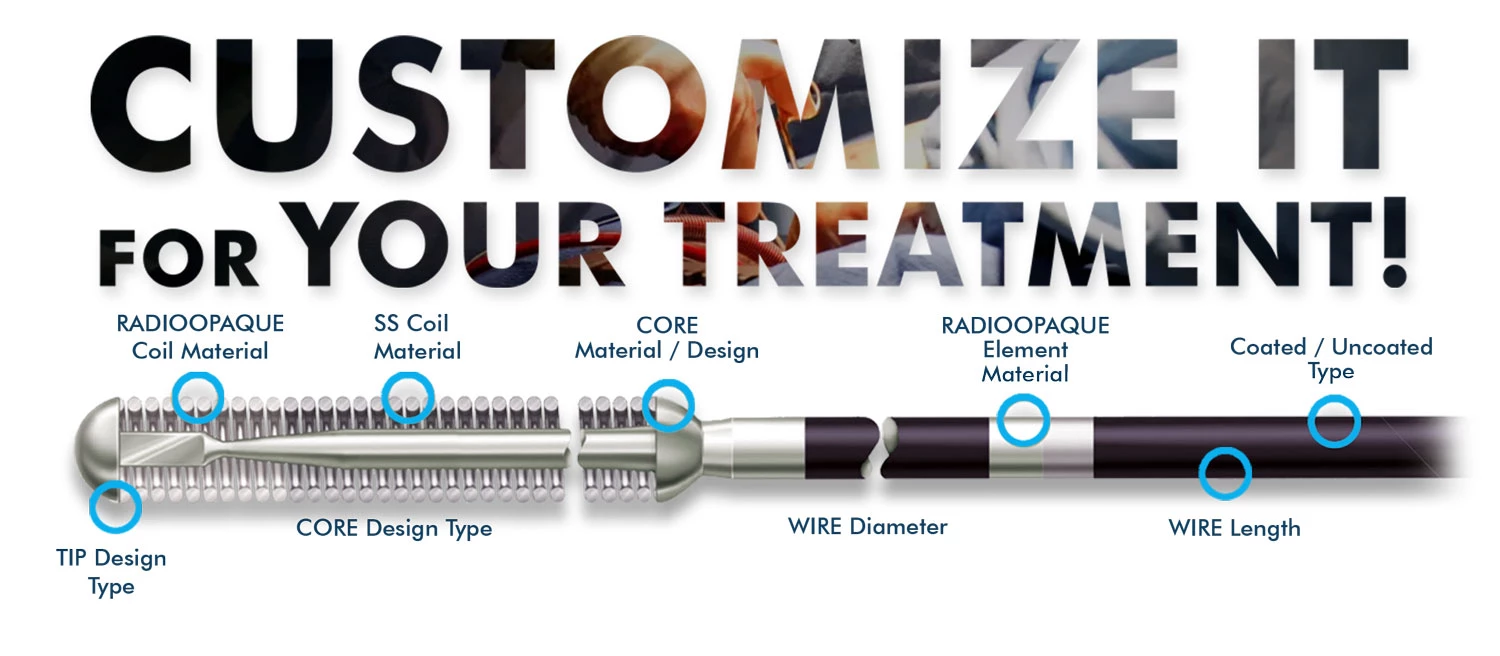

Choose from the best design InWIREⓇGUIDEWIRES with atraumatic performance in the vascular system and customize it for your treatment! GUIDEWIRE OF YOUR CHOICE
Unique Solution for PTCA and PTA and consists of an elastic nitinol core wire
- Easy steerability
- Flat,malleable tip
- Hydrophilic polymer coating
- Radio-opeque tip
- Torque Capability
Order Number | Diameter | Lenght | Tip Design | Tip Weight | Tip Shaping Part | Support | Coating |
VS1226 | 0.014” | 260 | Extra Floppy | 0,6 grf | 10 mm | Extra Support | Hydrophilic |
VS1227 | 0.014” | 180 | Extra Floppy | 0,6 grf | 10 mm | Extra Support | Hydrophilic |
VS1228 | 0.014” | 260 | Floppy | 1 grf | 10 mm | Light | Hydrophilic |
VS1229 | 0.014” | 180 | Floppy | 1 grf | 10 mm | Light | Hydrophilic |
VS1230 | 0.014” | 260 | Intermediate | 3.6 grf | 10 mm | Extra Support | Hydrophilic |
VS1231 | 0.014” | 180 | Intermediate | 3.6 grf | 10 mm | Extra Support | Hydrophilic |
VS1232 | 0.018” | 260 | Extra Floppy | 0,6 grf | 10 mm | Extra Support | Hydrophilic |
VS1233 | 0.018” | 180 | Extra Floppy | 0,6 grf | 10 mm | Extra Support | Hydrophilic |
VS1234 | 0.018” | 260 | Floppy | 1 grf | 10 mm | Light | Hydrophilic |
VS1235 | 0.018” | 180 | Floppy | 1 grf | 10 mm | Light | Hydrophilic |
VS1236 | 0.018” | 260 | Intermediate | 3.6 grf | 10 mm | Extra Support | Hydrophilic |
VS1237 | 0.018” | 180 | Intermediate | 3.6 grf | 10 mm | Extra Support | Hydrophilic |
