DolphinXR
Re-entry Catheter
Sub Intimal Support Catheter
| Radiopaque Marker | Radiopaque marker at 5 mm from the distal tip of the sheath | |
| Catheter Inner Layer | PTFE polytetrafluoroethylene | |
| Structure of the Catheter | PE/PEBAX | |
| Catheter Diameter | 6F, 7F | |
| Lenght | 90 cm, 150 cm | |
| Sheath Compatibility | 6F,7F | |
| Guidewire | <0,018" | |
| Avarage Usage Time (min) | 8 | |
| Avarage total fluoroscopy time(min) | 17 |
The Dolphin XR Re-entry Catheter is a Re-Entry support catheter designed to facilitate the placement and positioning of guide wires and Contrast Solutions in the peripheral vasculature to the site of stenotic lesions, including sub and chronic total occlusions. With its atraumatic tip structure and hydrophilic surface, it has a high ability to pass from subintimal and progress in chronic total occlusions and vascular stenosis. It is a double lumen catheter used to pass occluded lesions and re-enter the lumen in iliac and below -knee applications. Compatible with 0.014” and 0.018” wire.
Detailed specifications
DolphinXRRe-entry Catheter System, designed for intuitive true lumen re-entry from the subintimal space of the artery, is the best graceful dual-component solution for challenging lesions that create a path for the Micro-Catheter to re-enter the vessel with precision and ease.
DolphinXR Re-entry
- True Precision,
- True Control
- True Lumen

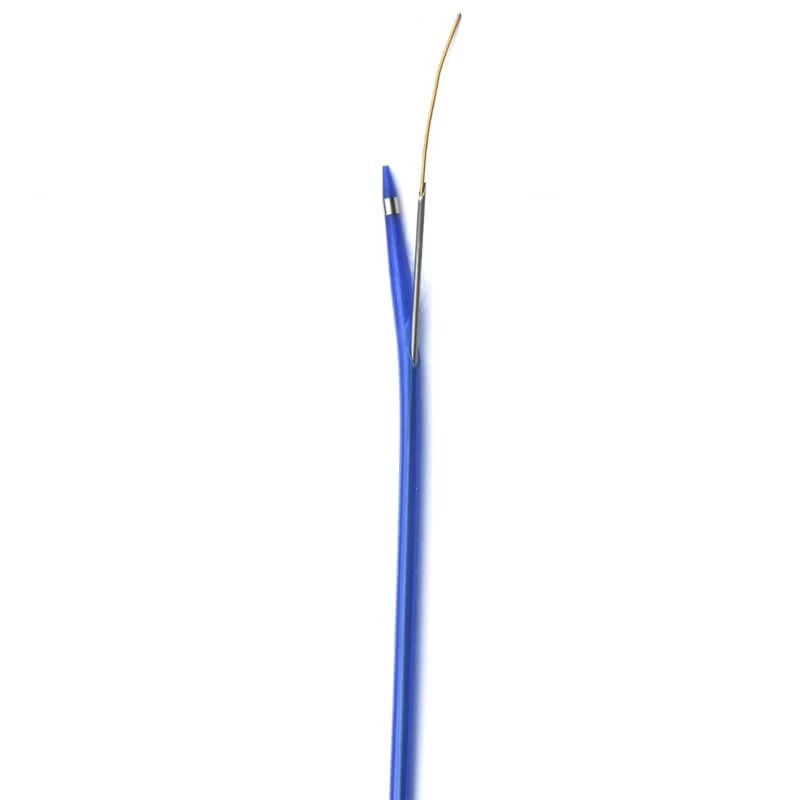

DolphinXR Re-entry catheter enters true lumen from subintimal space when combined with a guidewire in chronic total occlusions. The integrated re-entry system can be used to access and bypass lesions above or below the knee.
RE-ENTRY CATHETER system provides an operating channel for angioplasty and stent placement within the subintimal space of the vessel wall.
A braided catheter shaft provides effective torque control
It provides easy and quick positioning to the target re-entry area.
OTW 0.014 "and 0.018” guide wire compatibility
Minimizes guide wire exchange with flexible structure
- Ergonomic construction for perfect control
- Fluoroscopy adjustment of traditional guidewire techniques helps reduce the time of adjustment.
| Radiopaque Marker | Radiopaque marker at 5 mm from the distal tip of the sheath | |
| Catheter Inner Layer | PTFE polytetrafluoroethylene | |
| Structure of the Catheter | PE/PEBAX | |
| Catheter Diameter | 6F, 7F | |
| Lenght | 90 cm, 150 cm | |
| Sheath Compatibility | 6F,7F | |
| Guidewire | <0,018" | |
| Avarage Usage Time (min) | 8 | |
| Avarage total fluoroscopy time(min) | 17 |
| Order Number | Device outer diameter | Working Length | Crossing Profile (max inch) | Useable Guidewire |
| VS1130 | 6.0 Fr | 90 cm | 0,066” | 0.018" |
| VS1131 | 6.0 Fr | 150 cm | 0,066” | 0.018" |
| VS1132 | 7.0 Fr | 90 cm | 0,066” | 0.018" |
| VS1133 | 7.0 Fr | 150 cm | 0,066” | 0.018" |
