DolphinZebra
Crossing Support Catheter
Dolphin Zebra Crossing Support Catheter is intended for use in a small vessel or super-selective anatomy for diagnostic and interventional procedures, including peripheral use
| Design | Zebra Crossing Design | |
| Guideware Compatibility | 0,014", 0,018", 0,035" | |
| Catheter Lenght | 90 cm, 135 cm, 150 cm | |
| Catheter Profile | 4.0F-5.0F-6.0F | |
| Radiopaque Markers | PT-IR | |
| Coating Zone | 40 cm | |
| Tip Crossing Profile | 0,66mm 2F |

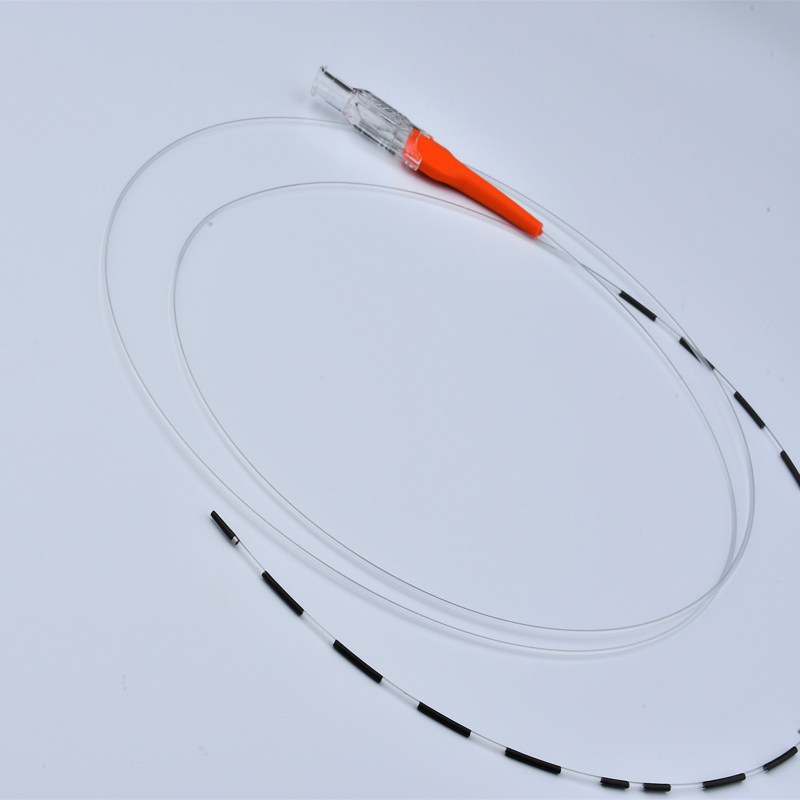

INVAMED Dolphin Support Catheter is used for transition from occlusion to true lumen. It consists of an over-the-wire catheter with a fixed hub. Radiopaque markings indicate the distal end of the catheter and assist in catheter placement and measurement of lesion length. The catheter includes an atraumatic tip to assist advancement towards and through peripheral vasculature stenosis and chronic total occlusions. The catheter has a hydrophilic coating used to provide lubrication. It has Radio-opaque marker bands with 0.5 mm and 1 cm periods. Over-the-wire catheter is compatible with 0.014" (0.356 mm), 0.018" (0.457 mm), and 0.035" (0.889 mm) guidewires and is available in working lengths of 90 cm. The proximal portion of the catheter includes a Luer hub connected to the catheter lumen.
Detailed specifications
DolphinXC with the hydrophilic coating is a kink-resistant catheter designed to facilitate wire guide exchange, infusion, and wire guide support.
It may be used to assist with the placement and exchange of guidewires and other interventional devices and administer drugs or fluids into blood vessels.
EXCEPTIONAL PUSHABILITY
Proprietary hydrophilic coating on distal 40 cm allows for smooth tracking through challenging vasculature.
Uniquely tapered insert entry profile.

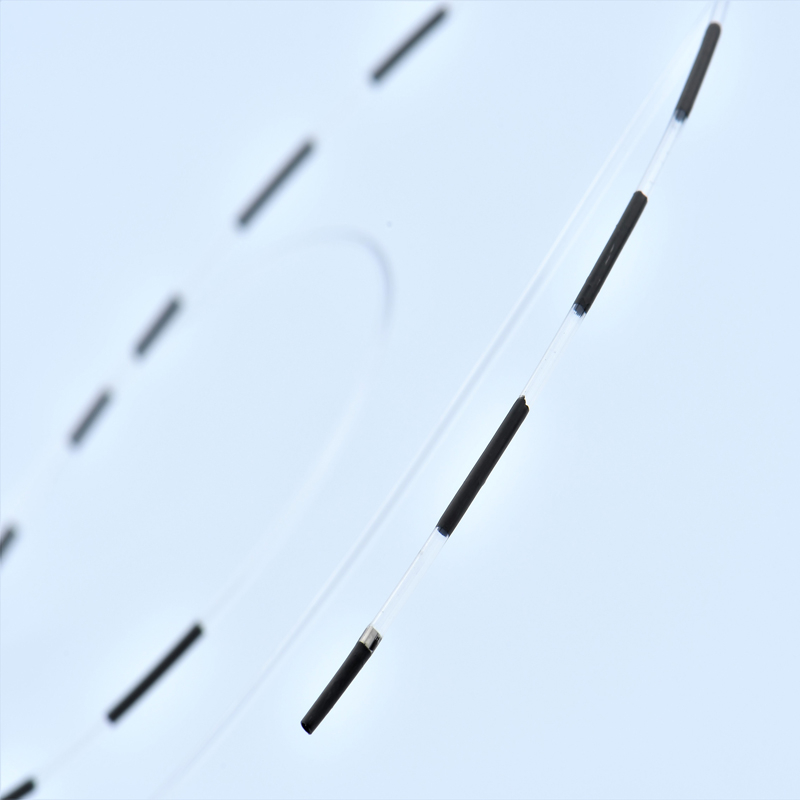

RO marker with 0.5 mm and 1 cm periods
With its special design, it provides ease of measurement and provides wide treatment possibilities with its optimum pushability and low-end entry profile
It is designed to reach and traverse small vessels and narrow stenotic lesions.
Designed to facilitate delivery and entry in distal lesions and complex vasculature
- Polymer jacket
- Polymeric liner
- RO Marker
- Tip tube
| Design | Zebra Crossing Design | |
| Guideware Compatibility | 0,014", 0,018", 0,035" | |
| Catheter Lenght | 90 cm, 135 cm, 150 cm | |
| Catheter Profile | 4.0F-5.0F-6.0F | |
| Radiopaque Markers | PT-IR | |
| Coating Zone | 40 cm | |
| Tip Crossing Profile | 0,66mm 2F |
| Order Number | Device outer diameter | Working Length | RO | Guidewire Compatibility |
| VS1085 | 4.0 Fr | 90 cm | 30 cm | 0.014" |
| VS1086 | 4.0 Fr | 135 cm | 30 cm | 0.014" |
| VS1087 | 4.0 Fr | 150 cm | 30 cm | 0.014" |
| VS1088 | 5.0 Fr | 90 cm | 30 cm | 0.014" |
| VS1089 | 5.0 Fr | 135 cm | 30 cm | 0.014" |
| VS1090 | 5.0 Fr | 150 cm | 30 cm | 0.014" |
| VS1091 | 4.0 Fr | 90 cm | 30 cm | 0.018" |
| VS1092 | 4.0 Fr | 135 cm | 30 cm | 0.018" |
| VS1093 | 4.0 Fr | 150 cm | 30 cm | 0.018" |
| VS1094 | 5.0 Fr | 90 cm | 30 cm | 0.018" |
| VS1095 | 5.0 Fr | 135 cm | 30 cm | 0.018" |
| VS1096 | 5.0 Fr | 150 cm | 30 cm | 0.018" |
| VS1097 | 6.0 Fr | 90 cm | 30 cm | 0.018" |
| VS1098 | 6.0 Fr | 135 cm | 30 cm | 0.018" |
| VS1099 | 6.0 Fr | 150 cm | 30 cm | 0.018" |
| VS1100 | 5.0 Fr | 90 cm | 30 cm | 0.035" |
| VS1101 | 5.0 Fr | 135 cm | 30 cm | 0.035" |
| VS1102 | 5.0 Fr | 150 cm | 30 cm | 0.035" |
| VS1103 | 6.0 Fr | 90 cm | 30 cm | 0.035" |
| VS1104 | 6.0 Fr | 135 cm | 30 cm | 0.035" |
| VS1105 | 6.0 Fr | 150 cm | 30 cm | 0.035" |
