Jaguar
Twisted Long Sheath

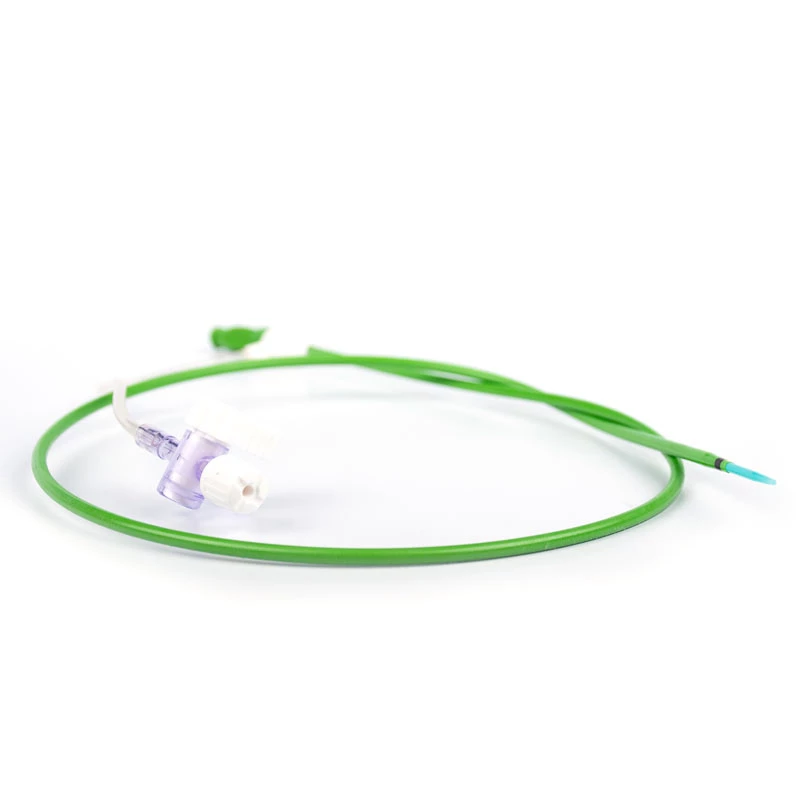

JaguarⓇCatheter is designed to perform as a guiding catheter and an introducer sheath. JaguarⓇ Catheter is designed to be used for the introduction of interventional and diagnostic devices into the human vasculature, including but not limited to the lower extremities, renal arteries, and carotid arteries. It comes packaged with a dilator and a choice of hemostatic valve types.
| Maximum Guidewire Size | 0.038" / 0.97 mm | |
| Radiopaque Marker | Coil design and radiopaque marker at 5 mm from the distal tip of the sheath | |
| Reinforcement inside the sheath | Stainless steel coil | |
| Sheath Inner Layer | PTFE polyetrafluoroethylene | |
| Maximum Guidewire Size | 0.038"/0.97 mm | |
| Structure of the Catheter | PE/PEBAX |
Jaguar Guiding Long Sheath is designed to perform as a guiding catheter and an introducer sheath. The sheath is coil reinforced, has a radiopaque marker and approximately 5 cm (50 mm) of the distal tip is hydrophilically coated. It comes packaged with a dilator and a choice of hemostatic valve types.
Detailed specifications

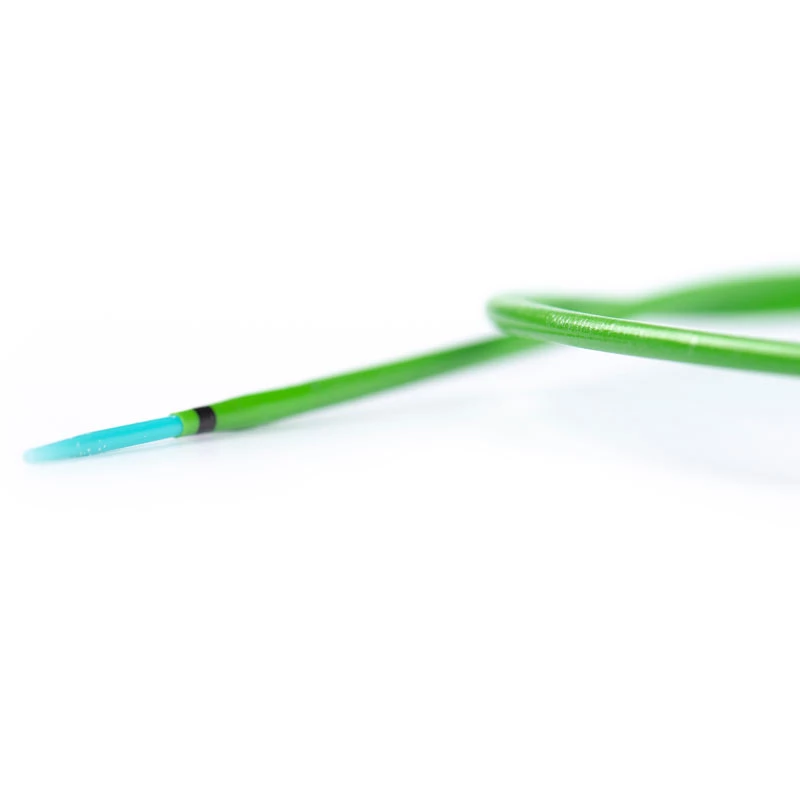

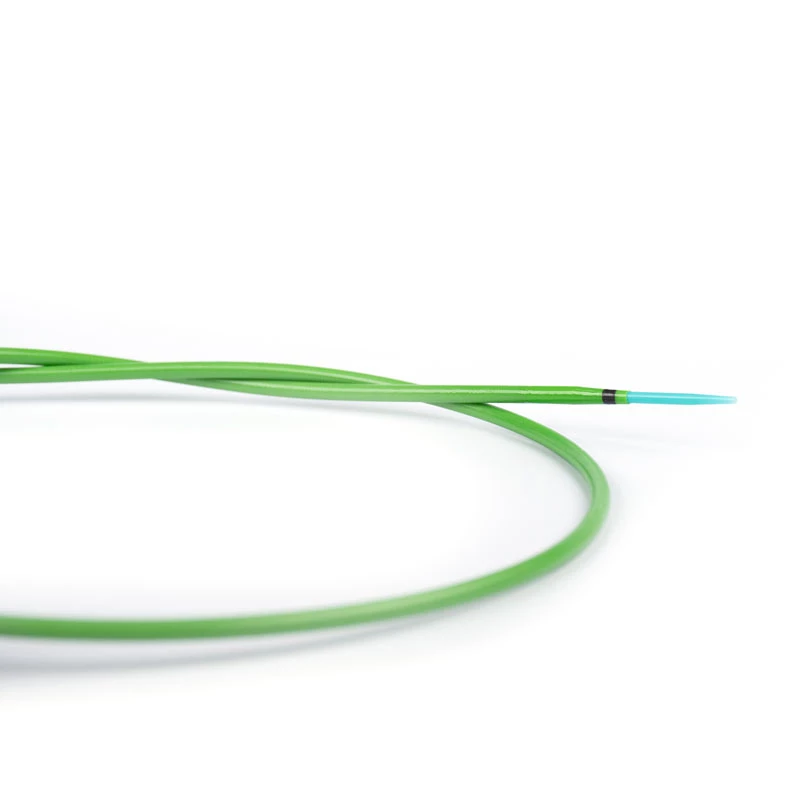

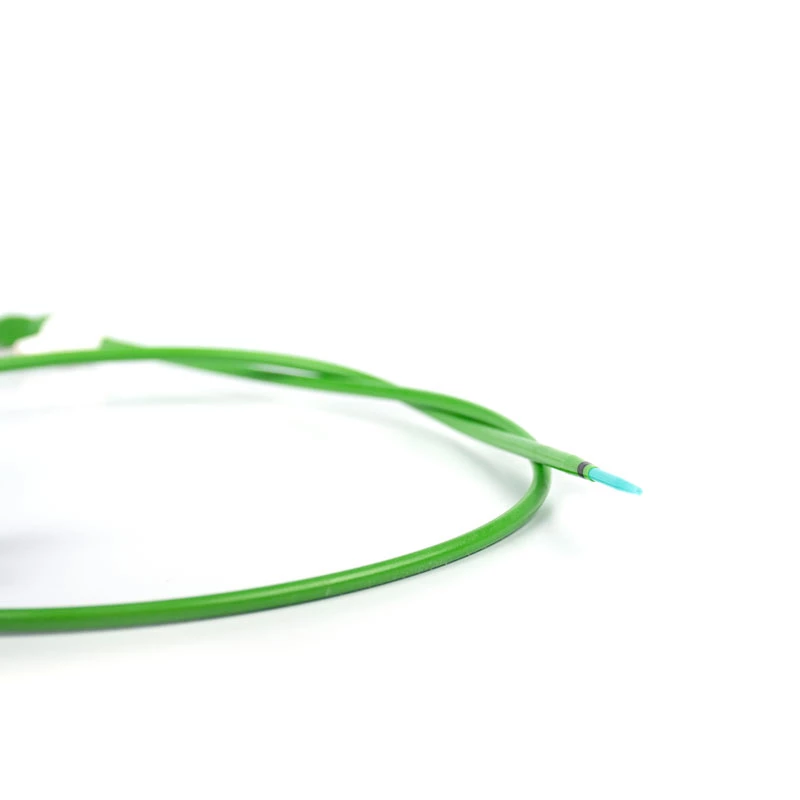

A highly flexible and reinforced introducer sheath is designed to resist kinking. It incorporates a radiopaque marker located approximately 5mm proximal to the tip. JaguarⓇ is available in several distal segment shapes. The sheath has an atraumatic tip that is hydrophilically coated.

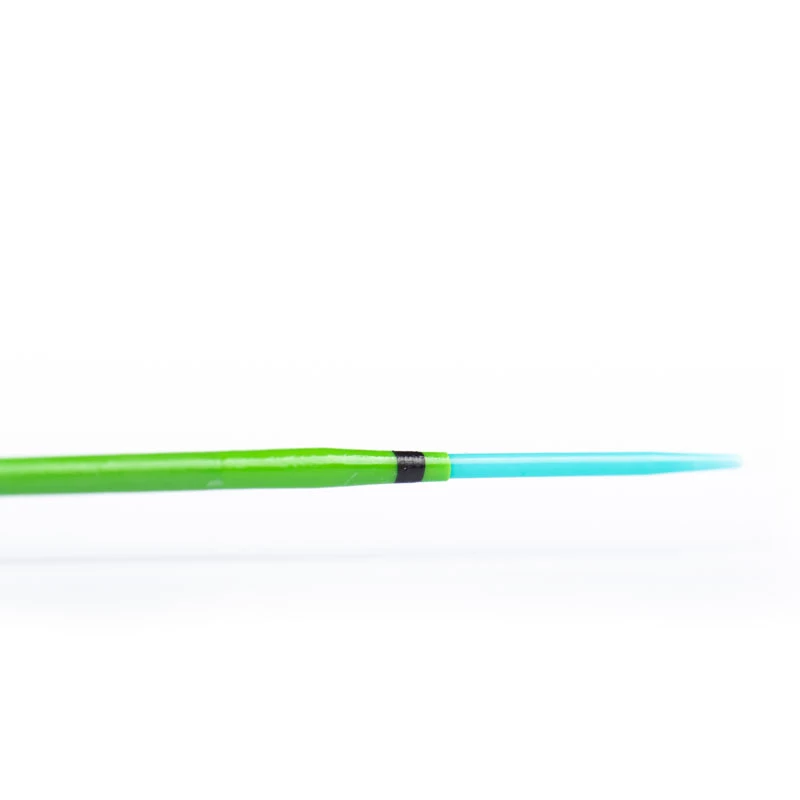

The exact proper of the dilator in the sheath allows for simultaneous motion of both dilator and sheath. The shape of the dilator compliments the shape of the sheath. The radiopacity of the dilator has been greatly enhanced to increase the visibility. The distal segment of the dilator has been minimized to extend approximately 2 cm beyond the tip of the sheath.

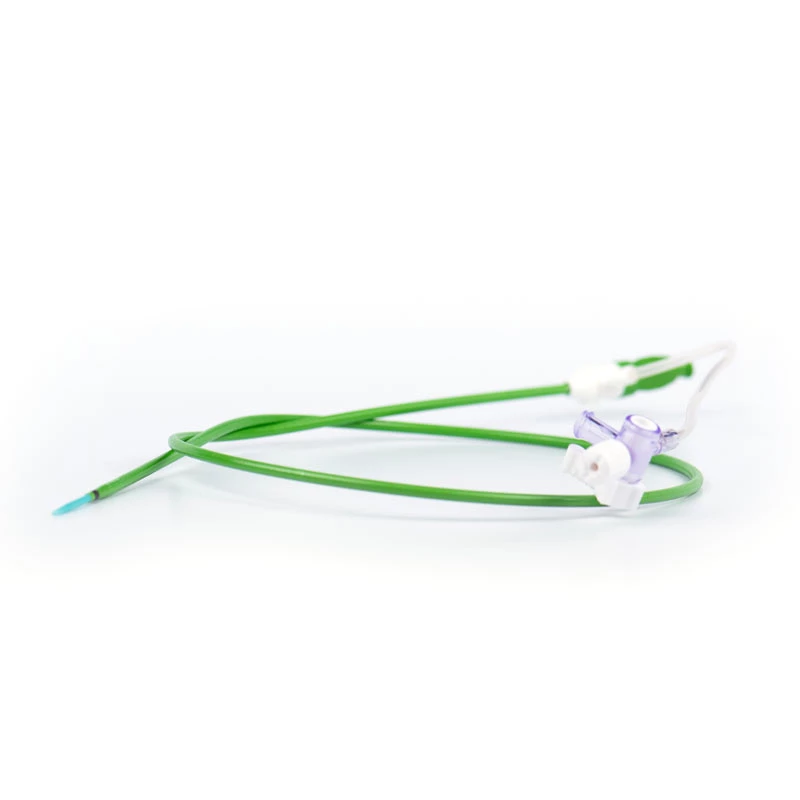

Every JaguarⓇ Catheter has y-shaped valve types are equipped with a three-way stopcock connected by a side tube.
Resists kinking: Stainless steel coil for consistent reliability
Allows easy penetration and smooth transition.
Atraumatic tip: Minimizes potential for vessel damage
Smooth transitions: Guidewire-to-dilator-to sheath
Provides lesion access: Exceptional trackability, even in the most challenging anatomy
Enhances visualization for precise positioning: High radiopacity
Provides smooth movement: Coil reinforced tubing and PTFE inner layer that minimizes friction
Shapes and sizes to meet your peripheral challenge.
| Maximum Guidewire Size | 0.038" / 0.97 mm | |
| Radiopaque Marker | Coil design and radiopaque marker at 5 mm from the distal tip of the sheath | |
| Reinforcement inside the sheath | Stainless steel coil | |
| Sheath Inner Layer | PTFE polyetrafluoroethylene | |
| Maximum Guidewire Size | 0.038"/0.97 mm | |
| Structure of the Catheter | PE/PEBAX |
| Order Number | Device inner diameter | Working Length | Shape |
| VS1134 | 6.0 Fr | 45 cm | Straight |
| VS1135 | 6.0 Fr | 45 cm | Angled |
| VS1136 | 6.0 Fr | 45 cm | Tapered |
| VS1137 | 7.0 Fr | 45 cm | Straight |
| VS1138 | 7.0 Fr | 45 cm | Angled |
| VS1139 | 7.0 Fr | 45 cm | Tapered |
| VS1140 | 6.0 Fr | 65 cm | Straight |
| VS1141 | 6.0 Fr | 65 cm | Angled |
| VS1142 | 6.0 Fr | 65 cm | Tapered |
| VS1143 | 7.0 Fr | 65 cm | Straight |
| VS1144 | 7.0 Fr | 65 cm | Angled |
| VS1145 | 7.0 Fr | 65 cm | Tapered |
| VS1146 | 6.0 Fr | 90 cm | Straight |
| VS1147 | 6.0 Fr | 90 cm | Angled |
| VS1148 | 6.0 Fr | 90 cm | Tapered |
| VS1149 | 7.0 Fr | 90 cm | Straight |
| VS1150 | 7.0 Fr | 90 cm | Angled |
| VS1151 | 7.0 Fr | 90 cm | Tapered |
